Automatic online Turntable Pallet Stretch Film Wrapping wrapper Machine

Automatic online Turntable Pallet Stretch Film Wrapping wrapper Machine
Availability:
Quantity:

Automatic online Turntable Pallet Stretch Film Wrapping wrapper Machine

Heavy Duty Large Online Fully Automatic Pallet Wrapping Machine with Conveyor

Fully automatic pallet wrapping machine is a traditional turntable type machine that has been designed to be as automatic as possible. Once the film has been loaded into the film jaw clamps there is no need to attach the film to the pallet in the normal way. At the end of the cycle the machine cuts the film with a hot wire, secures the tail end on to the pallet and then grips the film ready for the next load.


Product Paramenters
Model
2000FZ
Voltage
220/380V 50/60HZ 3P
Power

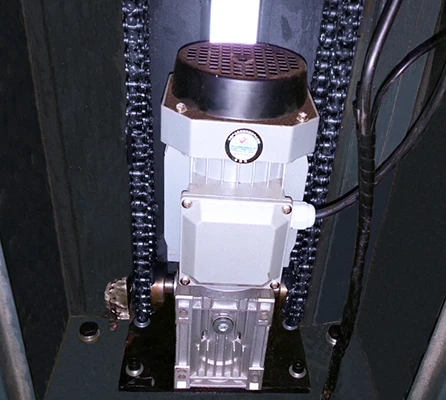

Turntable Motor: 0.75kw, Film Motor: 0.4kw, Column Motor: 0.37kw
Wrapping Size(L*W mm)
(500-1100)*(500-1200)
Wrapping Height
500-1800/2400
Capacity
20-40 Pallet/Hour
Turntable size
2000mm
Turntable Height
400mm
Max loading
2000kg
Speed
Adjustable
Machine Size
3200*2000*2100mm
Product Advantages
NO.1

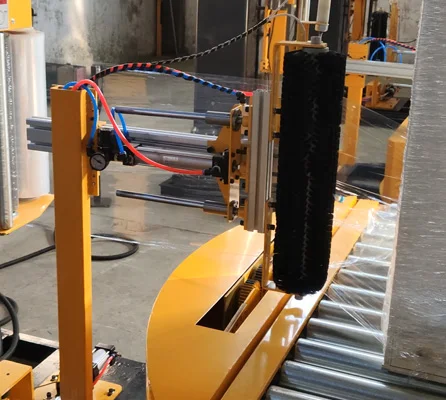

Automatic stretch foil cutting and applying system.



NO.2

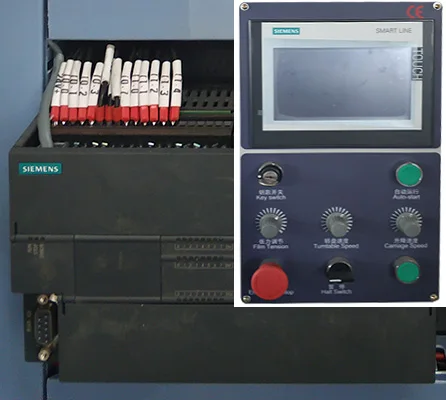

Siemens PLC and touch
screen.
NO.3

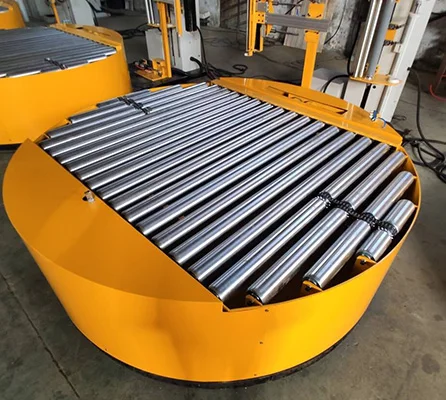

Motorized roller conveyor, input and output automatically.

NO.4

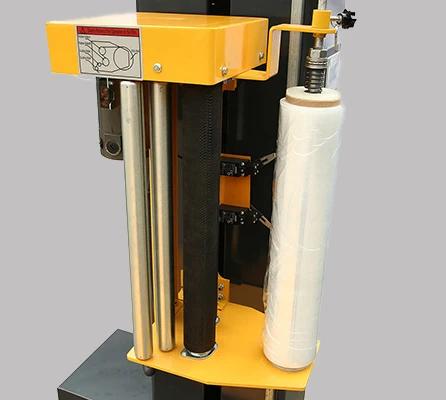

Pre-stretch film up to 300%.


NO.5

Speed adjustable



NO.6
  Lifting column for double chain structure
