Beer Filling Machine
The Beer-Filling-Machine category from Mesure Machinery provides professional, high-efficiency bottling and canning solutions for breweries of all scales.
Each system integrates rinsing, isobaric filling, capping or seaming, labeling, packaging, and palletizing—allowing smooth, automated operation from start to finish.
Product Range Overview
| Series | Container | Filling Type | Capacity Range (BPH) | Typical Use | Features |
| PET Bottle Series | PET Bottles (1–1.5L) | Isobaric Hot/Cold Fill | 2,000–36,000 | Fresh beer, carbonated beer | ★ 3-in-1 design (rinse–fill–cap)
★ 85–90°C compatible hot-fill
★ Bottle diameter 50–97 mm, height 150–320 mm
★ Easy bottle changeover |
| Glass Bottle Series | Glass Bottles | Isobaric / Vacuum Fill | Up to 24,000 | Craft beer, pasteurized beer | ★ 3-in-1 structure
★ Crown / ROPP / Ring cap
★ Servo-controlled valves
★ Integrated pasteurization section |
| Aluminum Can Series | Aluminum / Easy-Open Cans | Isobaric Cold Fill (0–4 °C) | 6,000–30,000 | Canned beer, energy drinks | ★ 2-in-1 fill + seam design
★ Ferrum sealing system
★ Compact structure
★ Stable performance at high speeds |
System Configuration
Rinsing Unit
Uses rotating clamps made of 304 stainless steel and food-grade pads. It keeps bottles scratch-free and water-saving.

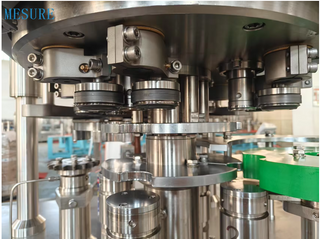

Filling Unit
Isobaric technology ensures accurate liquid levels and minimal foaming.
Gearing drive with PLC + inverter control provides stable, low-noise performance.
Capping / Seaming Unit
Automatic capping for bottles or double-seaming for cans.
Rejects missing caps, prevents contamination, and ensures perfect sealing.
Pasteurization Tunnel
Multi-zone spraying section extends product shelf life while maintaining flavor.
Labeling & Packaging Line
Supports PVC shrink sleeves, hot-melt wrap labels, film packaging, and carton or robot palletizing systems for full-line automation.
Capacity Distribution by Series
Below chart visualizes the production speed ranges across all Mesure beer-filling series:
Technical Highlights
| Parameter | Specification |
| Power Supply | 380 V / 50 Hz / 3 Phase |
| Air Pressure | 0.6–0.7 MPa |
| Rinse Water Pressure | 0.2–0.25 MPa |
| Temperature Range | 0–90 °C |
| Container Size | Diameter 45–97 mm / Height 70–320 mm |
| Certifications | ISO9001, CE, CNCA |
Line Integration Options
All systems can link seamlessly to:
Water treatment and mixing modules
Bottle blowing or depalletizing stations
Labeling and coding systems
Cartoning and palletizing units
It gives full flexibility—from small breweries to large-scale industrial setups.
Advantages at a Glance
Automated rinsing, filling, and sealing for consistent quality.
Hygienic design ensuring product purity and shelf stability.
Modular layout—easy to scale or upgrade.
Energy-efficient, low maintenance, and long service life.
Flexible configuration for PET bottles, glass bottles, and aluminum cans.
In short
The Beer-Filling-Machine category provides complete bottling and canning systems for all beer types—whether PET, glass, or aluminum.
Each line delivers precision, speed, and hygiene for breweries that need reliable, high-quality filling performance.
