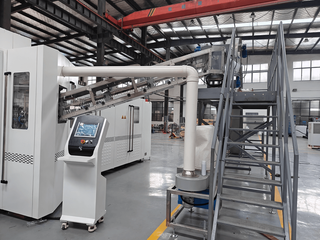

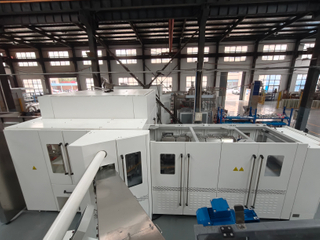

Combi-block System
The Combi-block System series is engineered for fully integrated bottle production.
It merges bottle blowing, filling, and capping into one seamless block — reducing transfers, improving hygiene, and boosting efficiency.
This category covers PET and plastic bottle applications across medium- to high-capacity production lines.
Core Features & Process Highlights
Blow-Mold Unit uses high-pressure air recovery technology, saving up to 20% of compressed air.
Control System adopts Siemens S7 PLC with SIMATIC HMI, providing an intuitive interface for quick mode changes between setup and production.
Hygienic Enclosure keeps the system fully sealed, minimizing manual contact and ensuring food-grade safety.
Cpacity & Application Range
| Parameter | Description |
| Output Range | Approx. 2,000 – 40,000 BPH (bottles/hour) |
| Bottle Size | Diameter ≤ 115 mm; Height 150 – 335 mm |
| Material Compatibility | PET bottles, plastic preforms, square or round shapes |
| Process Type | Integrated 3-in-1 blow + fill + cap system |
Modular Advantages

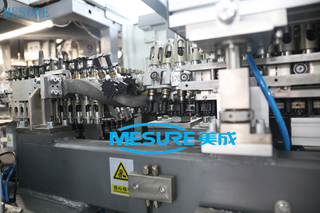

Fast Bottle Changeover — mechanical grippers and screw drives allow quick change of cams and nylon parts without altering the whole line.
Energy Efficient — air recovery, synchronized servo motion, and minimal transfers reduce power use and maintenance costs.
High Hygiene Standards — enclosed design ensures zero operator contact, meeting strict beverage-grade cleanliness levels.
Expandable System — easily connects to labeling, shrink wrapping, cartoning, and palletizing modules for a complete bottling line.
Typical Applications
One-Stop Bottle Production: ideal for mineral water, purified water, and functional drinks where blowing, filling, and capping occur in one system.
Quick Format Change: when multiple bottle types are used and downtime must be minimized.
High-Sanitation Environments: suitable for beverages, dairy, and other cleanroom-level production.
Wide Capacity Coverage: handles 2 k – 40 k BPH output, fitting both startup and large-scale factories.
In Short
The Combi-block System offers a one-station solution from preform blowing to final capping.
It’s designed for producers who want efficiency, cleanliness, and flexibility — managing all three key processes (blow, fill, cap) in one intelligent system.
