CJJ Series
MESURE
Machine application

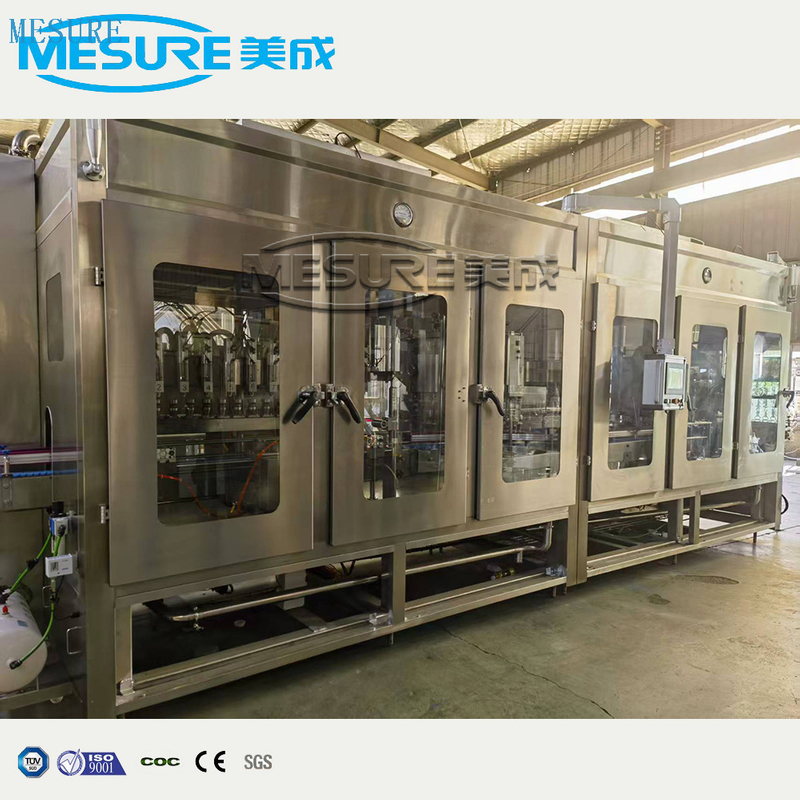

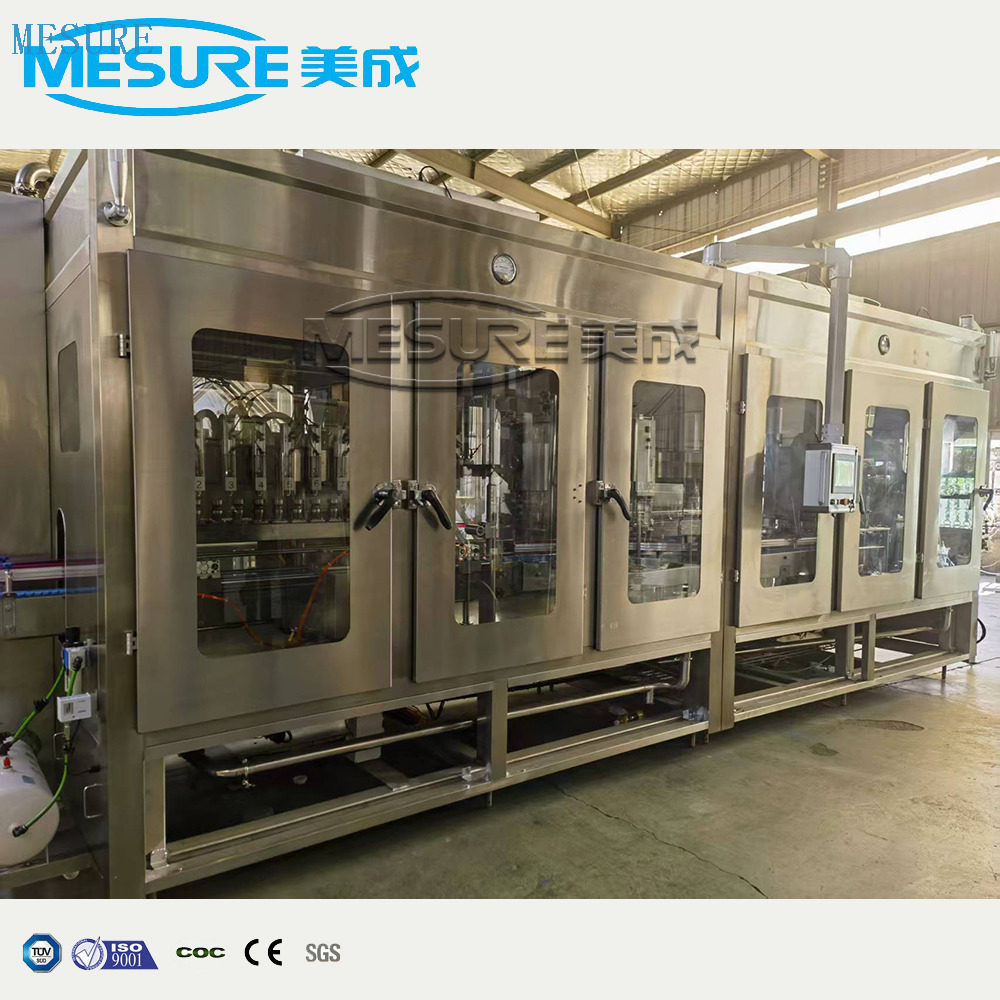

This machine is design for cold store dairy product bottling.
The working flow of the machine system
FFU lid→UV sterilization
↓ ↙

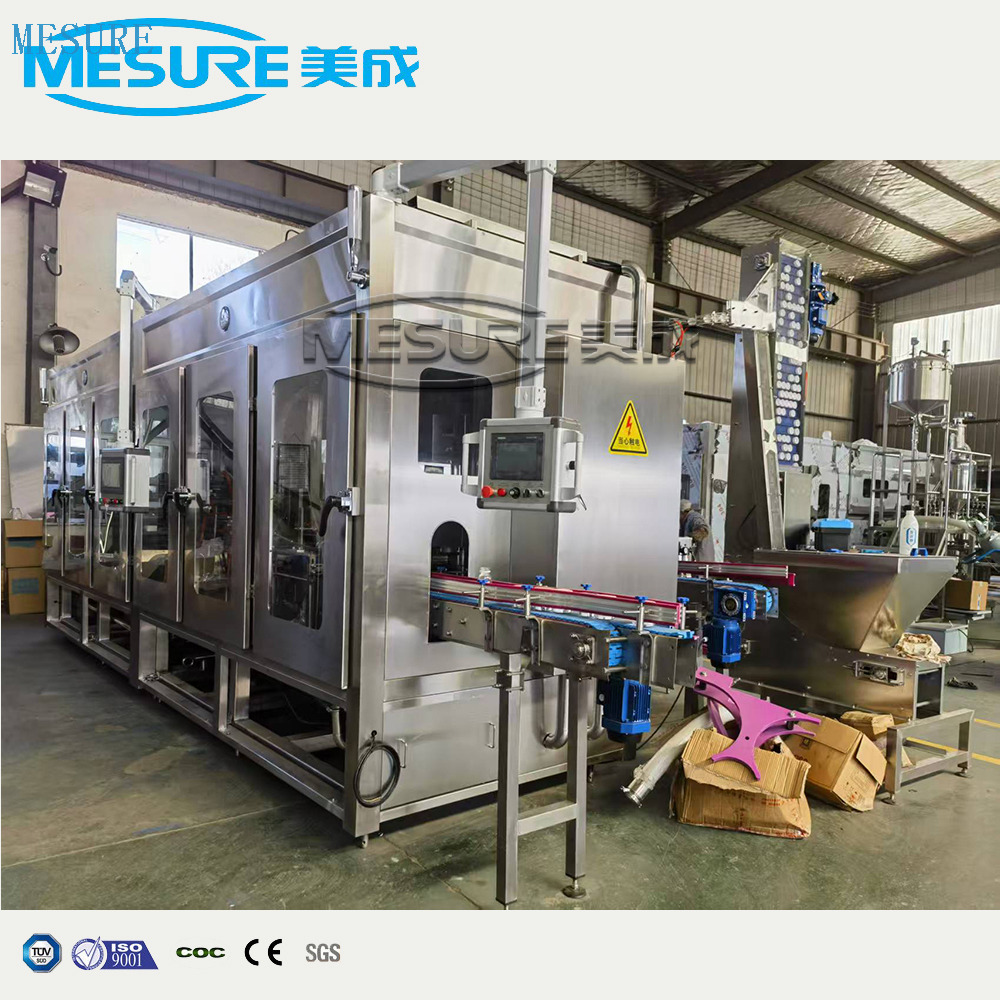

Bottle input→H2O2 sterilization→piston filler→sealing→bottle output
The machine structure
machine main frame: | Made of stainless steel material, surface polished |
Filling drive system: | Driven by servo motor, the transmission is simple and reliable, the movement precision is high, and the indexing is accurate. |
The main drive shaft has a position detection function to monitor the motion position status in real time | |
Output torque can be set to prevent overload of the transmission system | |
Bottle feeding system: | Single row bottle feeding |
Bottle-out detection system: | sensor |

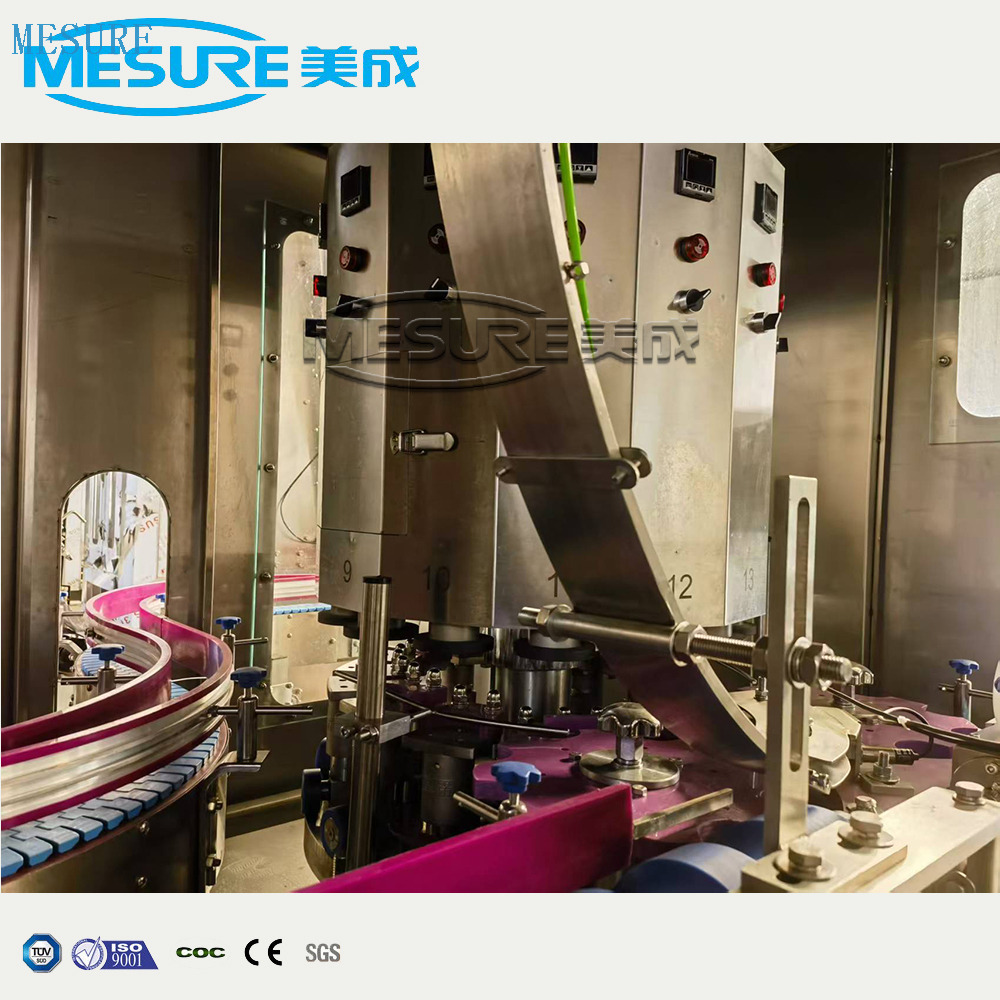

No bottle, no filling, no capping Chain straight in and out bottle system Anti-fall device | |
Bottle H2O2 sterilization | Efficiency >/=95% |
lid UV sterilization | Lid by UV lamp sterilizing |

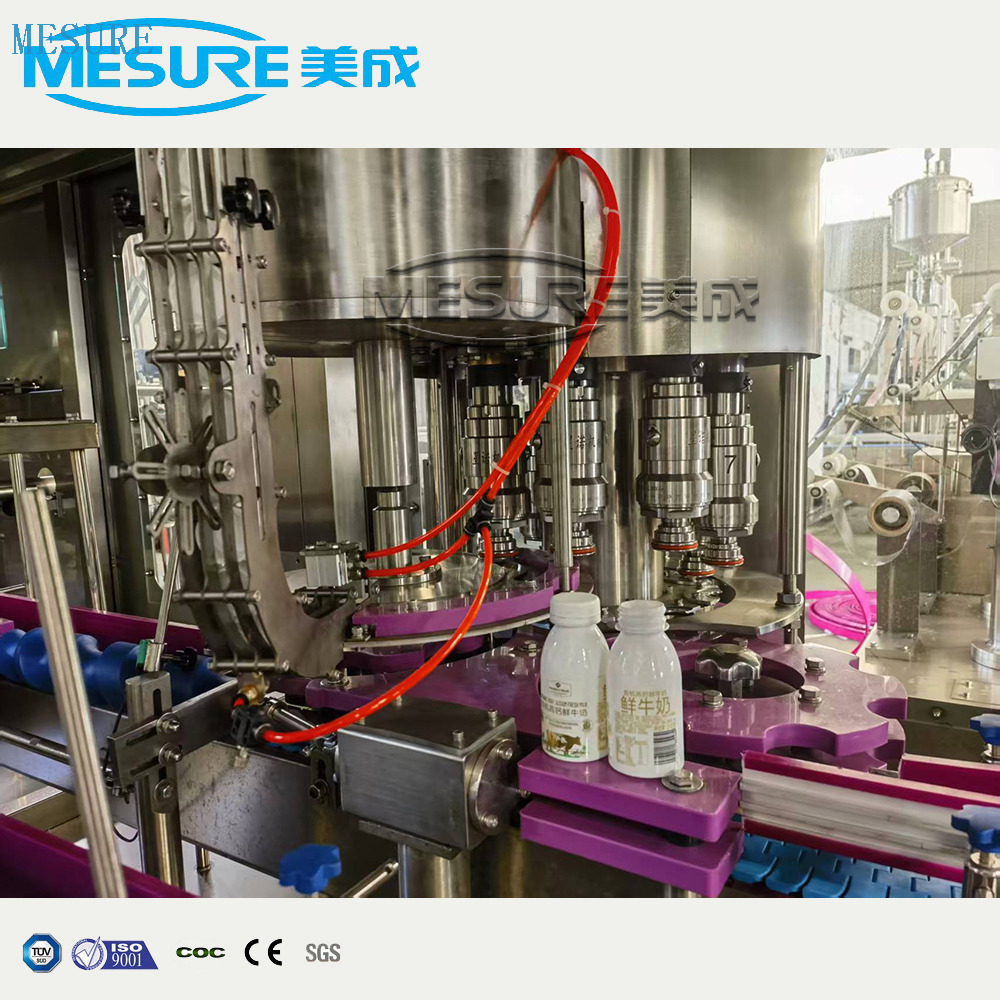

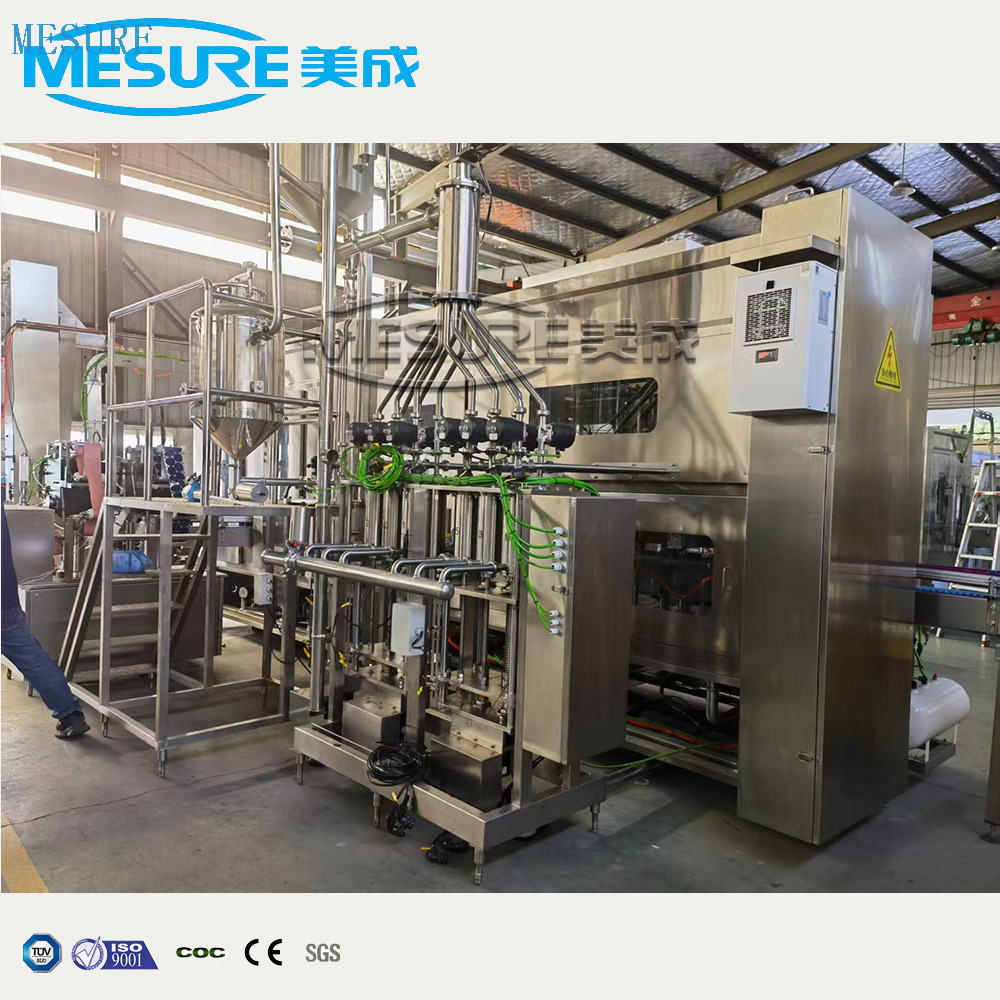

Filling system | suitable for filling various volumes |
The material enters the cylinder at a low position on the side to reduce the generation of foam. | |

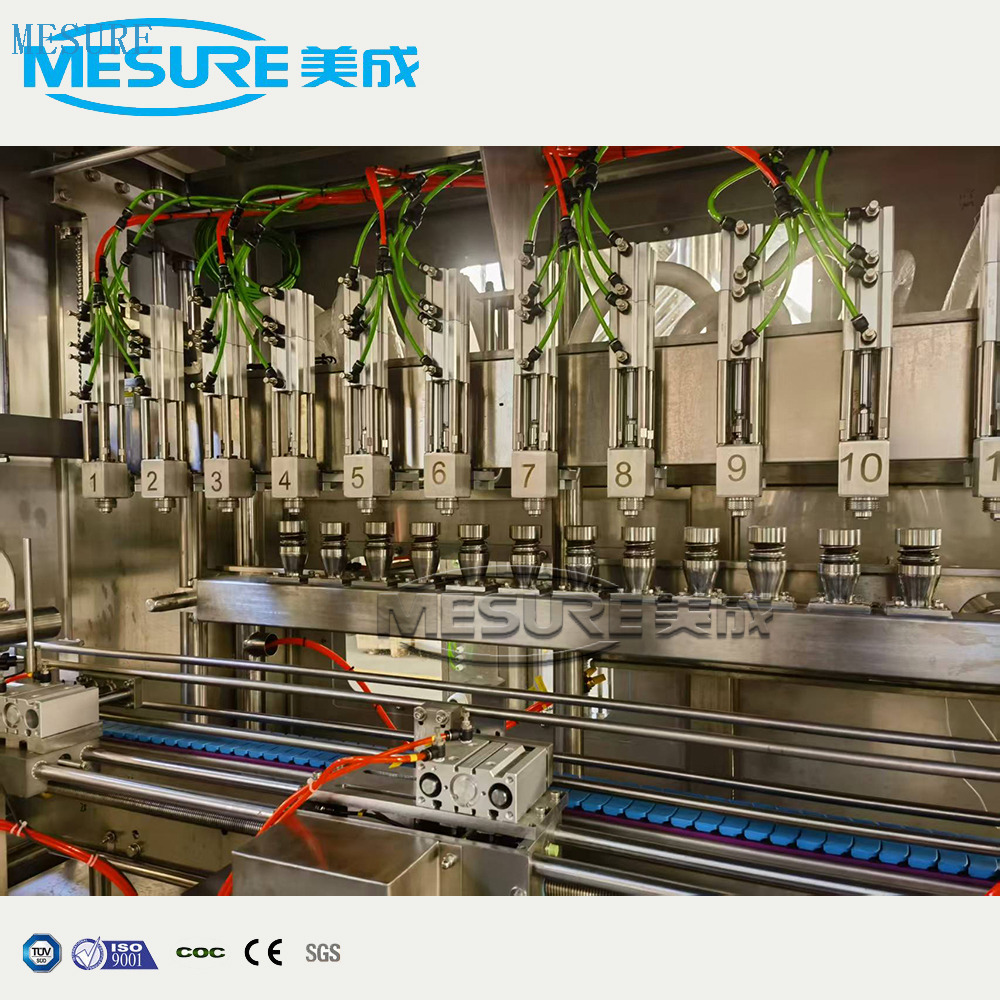

Filling bowl Equipped with high and low liquid level control device | |
The metering adopts piston quantitative , servo metering, precise cleaning without dead angle | |
The shut-off valve adopts imported diaphragm sterile valve, pneumatically driven | |
Filling volume adjustment: adjust the parameters through the touch screen (single head fine adjustment can be adjusted by adjusting the nut or the filling head drive shut-off valve.) | |
The system pipeline design is optimized, with no dead corners for cleaning | |
The filling head has no contact filling and special filling head design, which is suitable for filling a variety of liquids, with no dripping and less foam. | |
CIP function | With CIP function |
Electrical control system: | Humanized interface operation terminal, real-time cycle display of alarm information |
Related station operation status and position detection alarm circuit | |
Emergency stop button is installed at necessary locations |
